Maren

Tag Name: MAREN

Discover MAREN — an advanced internal pipeline reinforcement technology designed to restore structural integrity and extend the service life of aging metallic pipelines.

MAREN

From damaged pipelines to reinforced performance.

A composite reinforcement system that restores and strengthens aging metallic pipelines by installing a fiber-reinforced internal liner using an expandable elastic mandrel technology.

Introduction

MAREN is an innovative pipeline rehabilitation system that enables the internal reinforcement of metallic pipelines using fiber-reinforced polymer (FRP) composite liners installed with a reusable expandable elastic mandrel.

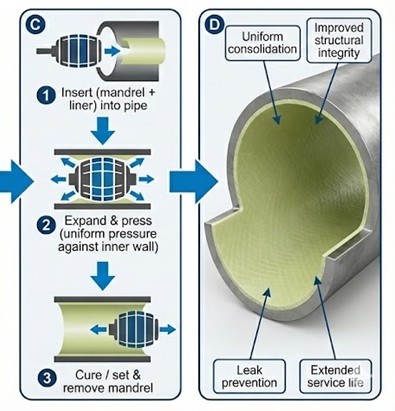

The technology introduces a controlled radial expansion mechanism that uniformly presses the composite liner against the inner wall of damaged pipelines during the curing process. Once curing is completed, the mandrel deflates and is removed, leaving behind a high-strength composite reinforcement layer that significantly improves structural performance and corrosion resistance.

By combining expandable mandrel technology with composite reinforcement, MAREN offers a cost-effective and sustainable solution for restoring aging pipeline infrastructure without full pipeline replacement.

The system has been prototyped and validated through burst, corrosion, and interfacial performance tests, demonstrating strong technical feasibility and industrial application potential (TRL 6).

Inventors

1 Prof. Elsadig Mahdi Ahmed Saad

2 Dr. Fatima Ghassan Alabtah

3 Dr. Daniel Roberto Hernandez Ochoa

Main Features

Internal Composite Reinforcement

Installs a fiber-reinforced polymer liner inside metallic pipelines to restore structural strength.

Expandable Elastic Mandrel Technology

Inflatable mandrel applies uniform radial pressure during curing for optimal liner bonding.

Reusable Installation System

Mandrel can be deflated and removed after curing, enabling repeated use across multiple pipeline repairs.

Corrosion Protection

FRP liner provides a protective internal barrier against corrosion and chemical degradation.

Structural Performance Enhancement

Improves pipeline burst strength, durability, and operational lifespan.

Strategic Opportunities

Oil & Gas Infrastructure

Pipeline rehabilitation and reinforcement for upstream and midstream energy systems.

Water Distribution Networks

Extending service life of municipal water pipelines and aging infrastructure.

Petrochemical & Chemical Industries

Protection and reinforcement of pipelines exposed to corrosive environments.

Marine & Offshore Pipelines

Durable reinforcement solutions for challenging marine operating conditions.

Hydrogen & CO₂ Transport Systems

Future-ready infrastructure support for energy transition pipeline networks.

Value Proposition

Extends Pipeline Lifespan

Restores structural integrity without costly pipe replacement.

Cost-Effective Rehabilitation

Reduces downtime, maintenance costs, and infrastructure replacement expenses.

Sustainable Infrastructure Solution

Minimizes material waste by rehabilitating existing pipelines.

High Structural Performance

Enhances burst resistance, corrosion protection, and long-term durability.

Scalable Industrial Deployment

Applicable across energy, water, chemical, and industrial pipeline networks.

Status of the Invention

US Provisional Patent Application

Prototype developed and validated

Technology Readiness Level: TRL 6

Invitation to Industry — Collaborate With Us

Join us in strengthening the next generation of critical infrastructure. MAREN is ready for:

Technology licensing and commercialization

Industrial pilot projects and field deployment

Energy and pipeline infrastructure partnerships

Joint development with pipeline engineering companies

With strong research backing from Qatar University, PipeReform offers a sustainable and scalable solution for pipeline rehabilitation and infrastructure resilience.

Connect With Us

Innovation Office — Qatar University | +974-4403-7197 | QU.IP@qu.edu.qa

IP Number: QU2025-006_USP1
